High Precision Flange Output Planetary Reducer with Servo Stepper Motor

Overview

Basic Info.

Model NO.	PLH64-L1
HS Code	8483402000

Product Description

Detailed Photos

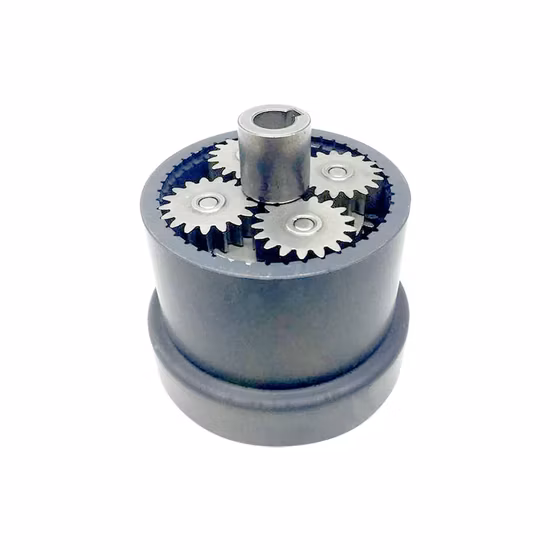

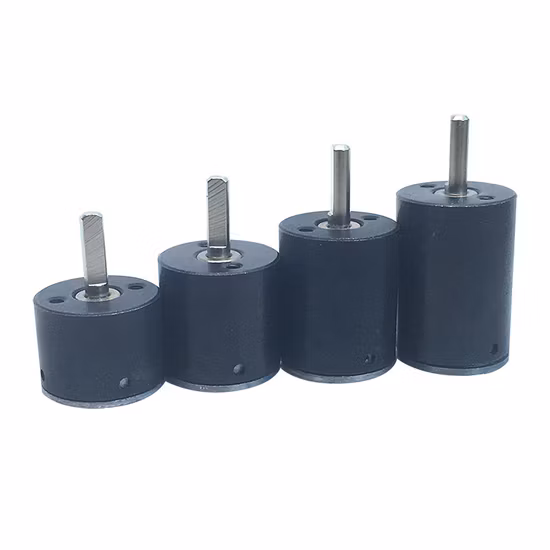

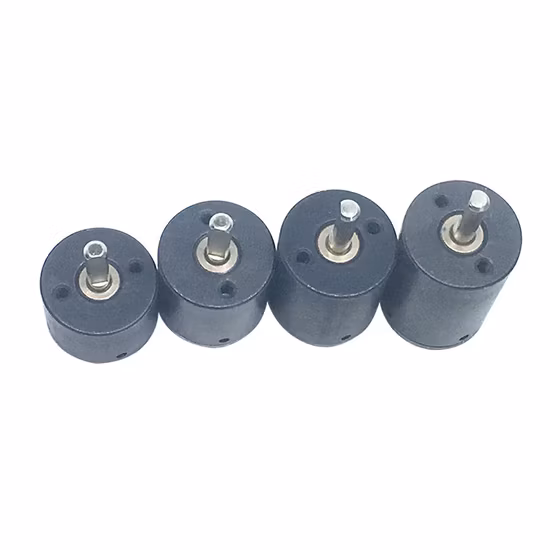

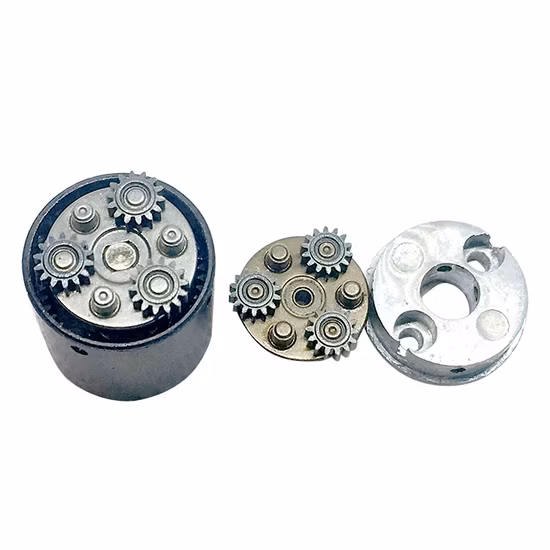

High precision flange output planetary reducer with servo stepper motor
PLANETX planetary reduce
Disc output reducer is widely used in industrial products due to its small size, light weight, large torque, wide speed ratio range, high rigidity, high precision, high transmission efficiency, maintenance free and other characteristics.
The planetary reducer structure is composed of a sun gear and a planet gear to form an external mesh, and a planet gear and an internal gear ring to form an internal mesh, so that the planet gear can realize revolution while realizing self rotation and maximum transmission of guarantee force; The minimum speed ratio of single-stage reduction is 3, and the maximum speed ratio is generally not more than 10. Common reduction ratios are 3, 4, 5, 6, 7, 8, and 10. The number of reducer stages is generally not more than 3, and the speed ratio is not more than 1000; The customized reducer with partial reduction ratio can achieve 4-5 levels of reduction, and the reduction ratio can reach 100000.
Most planetary reducers are used with servo motors to reduce speed, increase torque, increase inertia, and ensure return accuracy (the higher the return accuracy, the higher the price). The maximum rated input speed of planetary reducers can reach 12000 rpm (depending on the size of the reducer itself, the larger the reducer, the smaller the rated input speed), and the operating temperature is generally between - 40 ºC and 120 ºC.

Model	Unit	PLH064A PZH064A	PLH090A PZH090A	Ratios(i)
					Stages
Rated output torque	Nm	16.5	63	3	1-stages
		26	90	4
		28	100	5
		20	68	7
		12.5	43	10
		19.5	75	9	2-stages
		31.5	110	12
		31.5	110	16
		31.5	110	20
		33.5	120	25
		31.5	110	28
		33.5	120	35
		31.5	110	40
		33.5	120	50
		24	81	70
		37.5	130	80
		37.5	130	100
		40	145	125	3-stages
		37.5	130	140
		40	145	175
		37.5	130	200
		40	145	250
		37.5	130	280
		40	145	350
		37.5	130	400
		40	145	500
		28	95	700
		18.8	62	1000
Max.output torque	Nm	2/2*Nominal torqute

Backlash	arcmin	<4	<4	P1	1-stages
		<8	<8	P2
		<8	<8	P1	2-stages
		<12	<12	P2
		<10	<10	P1	3-stages
		<14	<14	P2
NO-load torque	NM	0.18	0.6		1-stages
		0.17	0.55		2-stegas
		0.16	0.5		3-stegas

Q: How to get a quick quote
A: Please provide the following information when contacting us

1. Motor brand
2. Motor model
3. Motor dimension drawing
4. What is the gear ratio

Q: How long is your delivery date
A: We all install it now, but it takes 3-5 days if it is not non-standard. Non standard 10-15 days, depending on the specific situation
Q:Do you provide samples, free or extra
A: A: You can reserve one first, and purchase it on demand
